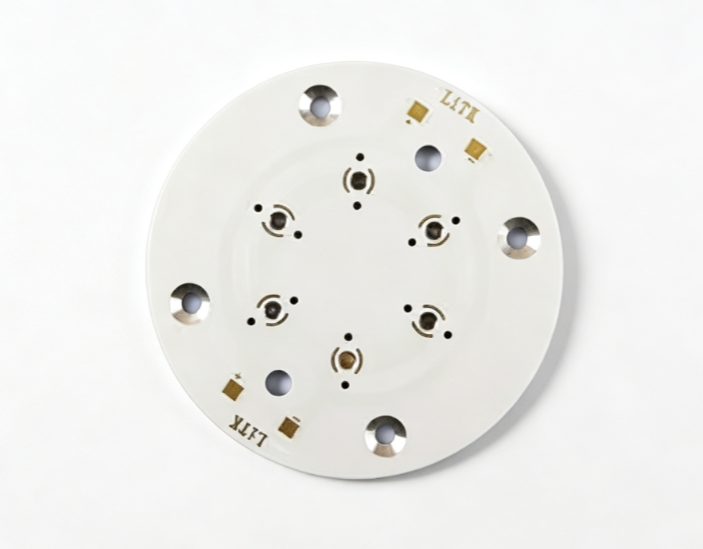

This single-layer aluminum base PCB uses 5052 aluminum substrate and 1oz copper foil, specially designed for audio amplifier circuit applications. 5052 aluminum core features excellent thermal conductivity to rapidly dissipate heat generated by power amplifier chips during operation, effectively reducing thermal accumulation and avoiding sound distortion caused by overheating. 1oz thick copper trace ensures large current carrying capacity and stable power transmission for audio circuits. The aluminum substrate delivers outstanding mechanical strength, vibration resistance and dimensional stability. With reliable insulation dielectric layer, the board prevents leakage current and short circuits. Widely used in audio power amplifiers, car amplifiers, speaker drive modules, digital audio players and power audio equipment.
| Layer Count | 1-Layer |
| Material | Aluminum 5052 |
| Board Thickness | 1.6 mm (Customizable) |
| Copper Thickness | 1 oz |
| Minimum Hole Size | 0.2 mm |
| Minimum Line Width | 0.1 mm |
| Minimum Line Spacing | 0.1 mm |
| Solder Mask Color | White |
| Surface Finish | ENIG |
Product Description
| Item | Mass Production Capability | Extreme Capability |
|---|---|---|
| Board Thickness Range | 0.3~6.0mm | 0.3~6.0mm |
| Exposure Alignment Accuracy | ±0.015mm | ±0.005mm |
| Minimum Annular Ring | Single side ≥0.05mm | Single side ≥0.05mm |
| Min Line Width/Space (1/3oz base copper) | 0.05mm / 0.05mm | 0.045mm / 0.045mm |
| Min Line Width/Space (1/2oz base copper) | 0.05mm / 0.05mm | 0.05mm / 0.05mm |
| Min Line Width/Space (1oz base copper) | 0.075mm / 0.075mm | 0.075mm / 0.075mm |
| Etching Tolerance (1/3oz base copper) | ±0.005mm | ±0.005mm |
| Etching Tolerance (1/2oz base copper) | ±0.005mm | ±0.005mm |
| Etching Tolerance (1oz base copper) | ±0.0075mm | ±0.0075mm |
| Gold Finger Total Pitch Tolerance | <30mm: ±0.05mm 30~60mm: ±0.075mm |
<30mm: ±0.03mm 30~60mm: ±0.05mm |
