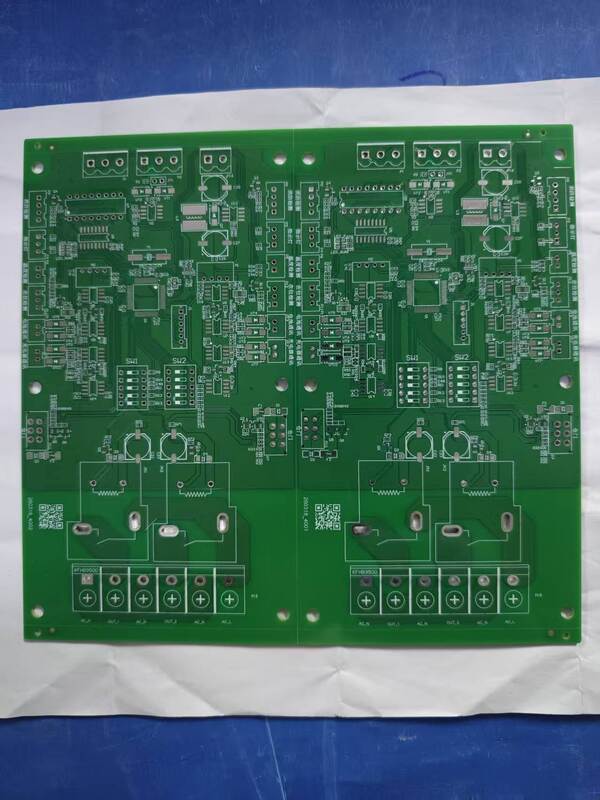

This product is specifically designed for industrial PLC products, providing a reliable and stable human-machine interaction (HMI) operating experience and complete application solutions.
| Layer Count | 2 |
| Material | FR4 |
| Board Thickness | 1.6mm |
| Copper Thickness | 1 oz |
| Minimum Hole Size | 0.25 mm |
| Minimum Line Width | 0.15 mm |
| Minimum Line Spacing | 0.13 mm |
| Solder Mask Color | Green |
| Surface Finish | Lead-free HASL |
| Application Field | PLC Industrial Automation |
Product Features
2-layer design ensures precise specification of trace width and spacing
All pads adopt lead-free HASL process to improve SMT yield and reliability
Comprehensive quality management control system ensures fault-free functionality along with electrical functional testing
Industrial automation design guarantees smoother and more stable performance when used with human-machine interfaces
PCB solution tailored specifically for the industrial automation PLC field
| Item | Mass Production Capability | Extreme Capability |
|---|---|---|
| Board Thickness Range | 0.3~6.0mm | 0.3~6.0mm |
| Exposure Alignment Accuracy | ±0.015mm | ±0.005mm |
| Minimum Annular Ring | Single side ≥0.05mm | Single side ≥0.05mm |
| Min Line Width/Space (1/3oz base copper) | 0.05mm / 0.05mm | 0.045mm / 0.045mm |
| Min Line Width/Space (1/2oz base copper) | 0.05mm / 0.05mm | 0.05mm / 0.05mm |
| Min Line Width/Space (1oz base copper) | 0.075mm / 0.075mm | 0.075mm / 0.075mm |
| Etching Tolerance (1/3oz base copper) | ±0.005mm | ±0.005mm |
| Etching Tolerance (1/2oz base copper) | ±0.005mm | ±0.005mm |
| Etching Tolerance (1oz base copper) | ±0.0075mm | ±0.0075mm |
| Gold Finger Total Pitch Tolerance | <30mm: ±0.05mm 30~60mm: ±0.075mm | <30mm: ±0.03mm 30~60mm: ±0.05mm |
