| Brand Name: | XSW PCB |
| Model Number: | XSWPCB |
| MOQ: | 1 |
| Price: | Negotiable |
| Payment Terms: | Western Union |
| Supply Ability: | 1 Million Square feet/per month |
| Layer Count | 4-Layer |
| Material | Rogers |
| Board Thickness | 1.0mm |
| Copper Thickness | 1/1/1/1 oz |
| Minimum Hole Size | 0.2 mm |
| Minimum Line Width | 0.1 mm |
| Minimum Line Spacing | 0.1 mm |
| Solder Mask Color | Black |
| Surface Finish | ENIG |
| Application Field | Communication internal board |
Product Overview

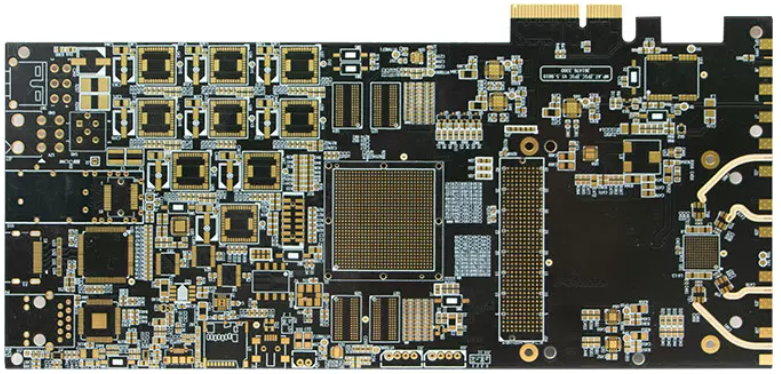

High-frequency PCB is a type of printed circuit board specifically designed for high-frequency applications. It is also known as high-frequency microstrip circuit board, high-frequency RF circuit board, high-frequency communication circuit board, and high-frequency automotive circuit board.
This product is specially designed to meet the demands of high-frequency communication and automotive systems. It is highly reliable, efficient, and versatile, making it an ideal choice for various applications.
The high-frequency PCB is RoHS compliant, ensuring it is free from hazardous substances such as lead, mercury, and cadmium. This makes it an environmentally friendly and safe option for electronic devices.
Board Thickness: 1.0 mm
The high-frequency PCB has a board thickness of 1.0 mm, featuring a compact and lightweight design. This makes it suitable for use in small electronic devices and automotive systems where space is limited.
Applications: (Communication, Automotive, etc.)
The high-frequency PCB is designed for automotive communication systems. It is capable of handling high-frequency signals, ensuring smooth and efficient communication between different components of the vehicle.
Impedance Value: ±10%
The high-frequency PCB has an impedance value of ±10%, ensuring stable and accurate signal transmission. This makes it a reliable choice for high-frequency applications requiring precise signal control.
Surface Finish: Immersion Gold (ENIG)
The high-frequency PCB is coated with an immersion gold (ENIG) finish, providing a smooth and flat surface. This surface treatment helps reduce signal loss and enhances the overall performance of the PCB.
Conclusion
In summary, the high-frequency PCB is a high-quality product designed to meet the demands of high-frequency applications. With its RoHS compliance, compact design, and reliable performance, it is the preferred choice for communication products, other high-frequency communication systems, and automotive applications.
| Item | Mass Production Capability | Extreme Capability |
|---|---|---|
| Board Thickness Range | 0.3~6.0mm | 0.3~6.0mm |
| Exposure Alignment Accuracy | ±0.015mm | ±0.005mm |
| Minimum Annular Ring | Single side ≥0.05mm | Single side ≥0.05mm |
| Min Line Width/Space (1/3oz base copper) | 0.05mm / 0.05mm | 0.045mm / 0.045mm |
| Min Line Width/Space (1/2oz base copper) | 0.05mm / 0.05mm | 0.05mm / 0.05mm |
| Min Line Width/Space (1oz base copper) | 0.075mm / 0.075mm | 0.075mm / 0.075mm |
| Etching Tolerance (1/3oz base copper) | ±0.005mm | ±0.005mm |
| Etching Tolerance (1/2oz base copper) | ±0.005mm | ±0.005mm |
| Etching Tolerance (1oz base copper) | ±0.0075mm | ±0.0075mm |
| Gold Finger Total Pitch Tolerance | <30mm: ±0.05mm 30~60mm: ±0.075mm |
<30mm: ±0.03mm 30~60mm: ±0.05mm |
