| Brand Name: | XSW PCB |
| Model Number: | XSWPCB |
| MOQ: | 1 |
| Price: | Negotiable |
| Payment Terms: | Western Union |
| Supply Ability: | 1 Million Square feet/per month |

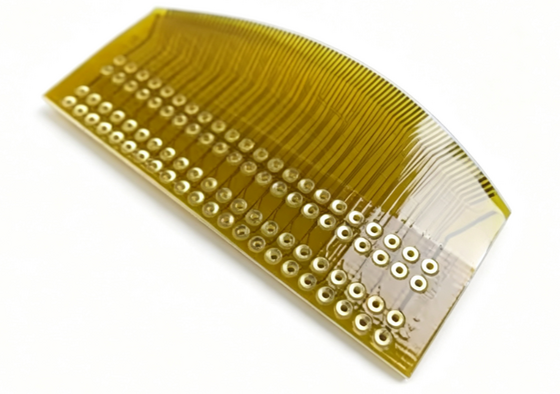

This single-layer flexible PCB adopts polyimide (PI) as base dielectric material, equipped with 1.6mm FR-4 reinforcing stiffener and electroless nickel immersion gold (ENIG) surface finish, customized for automotive and industrial instrument panels. The polyimide substrate delivers outstanding flexibility, bending resistance and heat resistance to adapt to curved installation space inside instrument panels. The bonded 1.6mm FR4 stiffener enhances local hardness, providing stable support for connector soldering, component assembly and mechanical plugging operation. Immersion gold surface ensures excellent oxidation resistance, stable contact conductivity and reliable solderability for terminals and miniature electronic parts. Featuring lightweight structure, stable signal transmission and long service life, this flex PCB is widely applied in automobile dashboard, meter control panels, vehicle display panels and industrial instrument control assemblies.
| Layer Count | 1-Layer |
| Material | FR-4 |
| Board Thickness | 0.15 mm (Customizable) |
| Copper Thickness | 0.5 oz |
| Minimum Hole Size | 0.2 mm |
| Minimum Line Width | 0.1 mm |
| Minimum Line Spacing | 0.1 mm |
| Solder Mask Color | Yellow |
| Surface Finish | Immersion Gold |
Product Description
1. Single layer flexible circuit constructed with high-performance Polyimide (PI) film substrate
2. Attached with 1.6mm FR-4 stiffener, strengthening partial rigidity to avoid deformation during assembly
3. Immersion Gold (ENIG) surface treatment, anti-oxidation, stable conductivity and superior solderability
4. Excellent flexibility and repeated bending resistance, suitable for curved mounting positions of instrument panels
5. Polyimide material possesses high thermal resistance, low shrinkage and good dimensional stability
6. Stiffener area offers flat soldering platform for connectors, switches and SMD components
7. Lightweight thin flex body helps miniaturize internal layout of instrument panels
8. Good insulation performance, stable electrical property under normal vehicle temperature variation
9. Support customized outline, routing, stiffener coverage area according to customer requirements
10. Vibration-resistant design, meets long-term working demands of dashboard & instrument equipment
| Item | Mass Production Capability | Extreme Capability |
|---|---|---|
| Board Thickness Range | 0.3~6.0mm | 0.3~6.0mm |
| Exposure Alignment Accuracy | ±0.015mm | ±0.005mm |
| Minimum Annular Ring | Single side ≥0.05mm | Single side ≥0.05mm |
| Min Line Width/Space (1/3oz base copper) | 0.05mm / 0.05mm | 0.045mm / 0.045mm |
| Min Line Width/Space (1/2oz base copper) | 0.05mm / 0.05mm | 0.05mm / 0.05mm |
| Min Line Width/Space (1oz base copper) | 0.075mm / 0.075mm | 0.075mm / 0.075mm |
| Etching Tolerance (1/3oz base copper) | ±0.005mm | ±0.005mm |
| Etching Tolerance (1/2oz base copper) | ±0.005mm | ±0.005mm |
| Etching Tolerance (1oz base copper) | ±0.0075mm | ±0.0075mm |
| Gold Finger Total Pitch Tolerance | <30mm: ±0.05mm 30~60mm: ±0.075mm |
<30mm: ±0.03mm 30~60mm: ±0.05mm |
