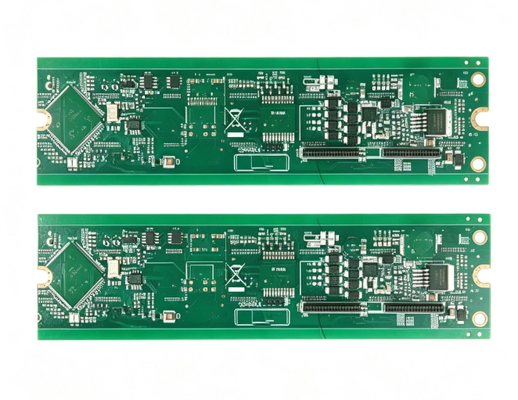

Anti-Interference Multilayer Automotive PCBA RF PCB Manufacturing is a high-reliability PCB assembly solution developed for automotive RF communication systems, vehicle electronics, ADAS modules, automotive radar, telematics control units (TCU), V2X communication devices, GPS navigation systems, and intelligent transportation applications. Designed with advanced multilayer PCB technology and optimized RF circuit architecture, this automotive-grade PCBA delivers excellent anti-interference performance, signal integrity, and long-term reliability under harsh vehicle operating conditions.
| Layer Count | 6-Layer |
| Material | FR4 |
| Board Thickness | 2.0 mm (Customizable) |
| Copper Thickness | 2/1/1/1/1/2 oz |
| Minimum Hole Size | 0.1 mm |
| Minimum Line Width | 0.1 mm |
| Minimum Line Spacing | 0.1 mm |
| Solder Mask Color | Green |
| Surface Finish | Lead-free soldering |
Product Description
| Item | Mass Production Capability | Extreme Capability |
|---|---|---|
| Board Thickness Range | 0.3~6.0mm | 0.3~6.0mm |
| Exposure Alignment Accuracy | ±0.015mm | ±0.005mm |
| Minimum Annular Ring | Single side ≥0.05mm | Single side ≥0.05mm |
| Min Line Width/Space (1/3oz base copper) | 0.05mm / 0.05mm | 0.045mm / 0.045mm |
| Min Line Width/Space (1/2oz base copper) | 0.05mm / 0.05mm | 0.05mm / 0.05mm |
| Min Line Width/Space (1oz base copper) | 0.075mm / 0.075mm | 0.075mm / 0.075mm |
| Etching Tolerance (1/3oz base copper) | ±0.005mm | ±0.005mm |
| Etching Tolerance (1/2oz base copper) | ±0.005mm | ±0.005mm |
| Etching Tolerance (1oz base copper) | ±0.0075mm | ±0.0075mm |
| Gold Finger Total Pitch Tolerance | <30mm: ±0.05mm 30~60mm: ±0.075mm |
<30mm: ±0.03mm 30~60mm: ±0.05mm |
