Industrial Control PCB
Created with Pixso.

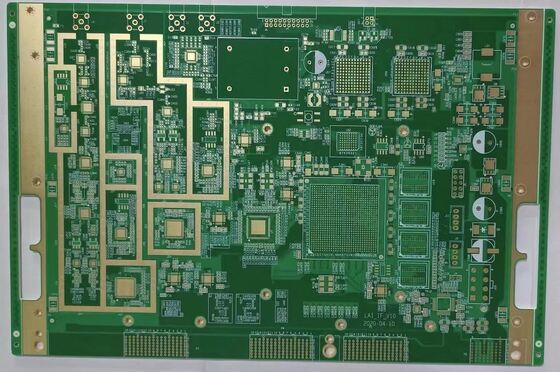

6 Layer Immersion Gold PCB Servo Driver Board FR4 TG170 Material

6 Layer Immersion Gold PCB Servo Driver Board FR4 TG170 Material

Brand Name: XSW PCB
Model Number: XSWPCB
MOQ: 1
Price: Negotiable
Payment Terms: Western Union
Supply Ability: 1 Million Square feet/per month
Detail Information
Place of Origin:
China
Certification:
UL ,IOS9000
Layer Count:
6
Material:
FR4 TG170
Board Thickness:
1.6 Mm
Copper Thickness:
1/1/1/1/1/1 Oz
Minimum Hole Size:
0.2 Mm
Minimum Line Width:
0.12 Mm
Minimum Line Spacing:
0.12 Mm
Supply Ability:
1 Million Square feet/per month
Highlight:

6 Layer Immersion Gold PCB

,

Immersion Gold PCB FR4 TG170

,

Servo Driver Board FR4 TG170

Product Description
6-layer ENIG servo drive printed circuit board



Key Specifications
Layer Count 6
Material FR4 TG170
Board Thickness 1.6 mm
Copper Thickness 1/1/1/1/1/1 oz
Minimum Hole Size 0.2 mm
Minimum Line Width 0.12 mm
Minimum Line Spacing 0.12 mm
Solder Mask Color Green
Surface Finish ENIG
Application Field Industrial servo driver

Product Description:

1. High-Tg Substrate & Thick Copper: Thermal Management Servo drives generate significant heat during operation. High-Tg Material: Tg ≥150°C (≥170°C recommended, e.g., Sunlord S1130) to prevent deformation/softening at high temperatures. Thick Copper: 2oz–3oz copper for main current loops (power transistors, motor drive lines). Compared to 1oz copper, 2oz copper increases heat dissipation area by ≈65% and reduces pad temperature by ≈35°C.

2. ENIG Process Control: Solderability & Reliability ENIG provides flat pads and good conductivity; precise control is critical. Nickel Layer: Temperature 82–88°C, pH 4.6–5.2. Deviation causes uneven crystallization, poor adhesion, and "black pad" defects. Gold Layer Thickness: 0.1–0.5μm recommended. Excessive gold causes "gold embrittlement" and cracks after reflow. Adhesion: Proper cleaning and micro-etching before ENIG ensure nickel-copper adhesion, surviving multiple reflow cycles without blistering or peeling.

3. Precision Circuitry & Impedance Control: Signal Integrity Servo drives integrate PWM, encoder feedback, and other high-precision signals. Line Width/Spacing: LDI technology for high-density areas, line width tolerance ≤±15μm. Impedance Matching: 50Ω single-ended / 100Ω differential for high-speed signals (encoder, communication interfaces), tolerance ≤±10% to prevent reflection and distortion. Length Matching & Isolation: Length matching for critical signals; strict physical isolation between high-current power lines and low-level control signals with ground isolation bands to prevent crosstalk.

Technical Specifications
Item Mass Production Capability Extreme Capability
Board Thickness Range 0.3~6.0mm 0.3~6.0mm
Exposure Alignment Accuracy ±0.015mm ±0.005mm
Minimum Annular Ring Single side ≥0.05mm Single side ≥0.05mm
Min Line Width/Space (1/3oz base copper) 0.05mm / 0.05mm 0.045mm / 0.045mm
Min Line Width/Space (1/2oz base copper) 0.05mm / 0.05mm 0.05mm / 0.05mm
Min Line Width/Space (1oz base copper) 0.075mm / 0.075mm 0.075mm / 0.075mm
Etching Tolerance (1/3oz base copper) ±0.005mm ±0.005mm
Etching Tolerance (1/2oz base copper) ±0.005mm ±0.005mm
Etching Tolerance (1oz base copper) ±0.0075mm ±0.0075mm
Gold Finger Total Pitch Tolerance <30mm: ±0.05mm
30~60mm: ±0.075mm
<30mm: ±0.03mm
30~60mm: ±0.05mm
