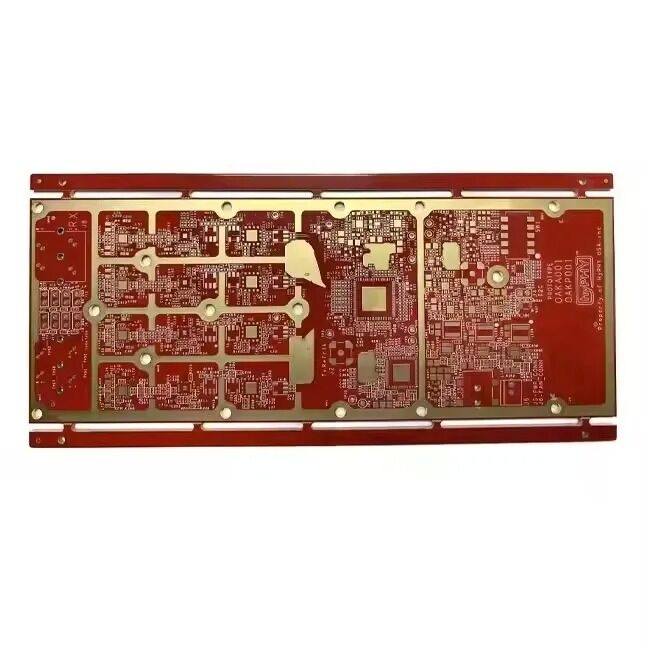

2.0mm PTFE FR4 High Frequency PCB Copper Circuit Board Mass Production is a high-performance printed circuit board designed for RF, microwave, high-speed digital communication, and advanced electronic applications. Combining the excellent dielectric properties of PTFE (Polytetrafluoroethylene) with the mechanical strength and processing advantages of FR4 materials, this hybrid high-frequency PCB delivers outstanding signal integrity, low transmission loss, and superior reliability in demanding environments.
| Layer Count | 18-Layer |
| Material | PTEF+FR4 |
| Board Thickness | 2.0 mm (Customizable) |
| Copper Thickness | 1/1/1/1/1/1/1/1/1/1/1/1/1/1/1/1/1/1 oz |
| Minimum Hole Size | 0.1 mm |
| Minimum Line Width | 0.1 mm |
| Minimum Line Spacing | 0.1 mm |
| Solder Mask Color | copper |
| Surface Finish | Immersion Gold |
Product Description
| Item | Mass Production Capability | Extreme Capability |
|---|---|---|
| Board Thickness Range | 0.3~6.0mm | 0.3~6.0mm |
| Exposure Alignment Accuracy | ±0.015mm | ±0.005mm |
| Minimum Annular Ring | Single side ≥0.05mm | Single side ≥0.05mm |
| Min Line Width/Space (1/3oz base copper) | 0.05mm / 0.05mm | 0.045mm / 0.045mm |
| Min Line Width/Space (1/2oz base copper) | 0.05mm / 0.05mm | 0.05mm / 0.05mm |
| Min Line Width/Space (1oz base copper) | 0.075mm / 0.075mm | 0.075mm / 0.075mm |
| Etching Tolerance (1/3oz base copper) | ±0.005mm | ±0.005mm |
| Etching Tolerance (1/2oz base copper) | ±0.005mm | ±0.005mm |
| Etching Tolerance (1oz base copper) | ±0.0075mm | ±0.0075mm |
| Gold Finger Total Pitch Tolerance | <30mm: ±0.05mm 30~60mm: ±0.075mm |
