8 Layer Through Hole PCB Assembly For Medical Devices

8 Layer Through Hole PCB Assembly For Medical Devices

Brand Name: XSW PCB
Model Number: XSWPCB
MOQ: 1
Price: Negotiable
Payment Terms: Western Union
Supply Ability: 1 Million Square feet/per month
Detail Information
Place of Origin:
China
Certification:
UL ,IOS9000
Layer Count:
8-Layer
Material:
FR-4
Board Thickness:
1.6mm (Customizable)
Copper Thickness:
1/1/1/1/1/1/1/1 Oz
Surface Finish:
ENIG
Supply Ability:
1 Million Square feet/per month
Highlight:

8 Layer Through Hole PCB Assembly

,

Medical Through Hole PCB Assembly

Product Description

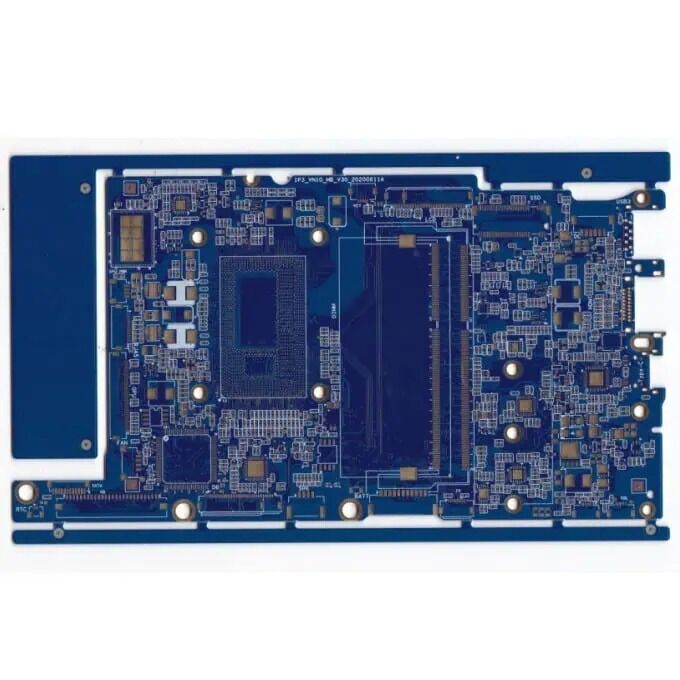

8 Layer Through-hole PCBA for Medical Devices Medical Through-Hole PCBA Assembly

Medical-grade 8-layer through-hole immersion gold and blue oil solder mask, controlling high aspect ratio perforation, gold layer density, and blue oil insulation performance. The board is 1.6mm thick with an 8:1 aspect ratio. Drilling utilizes a double-sided drilling process, ensuring no glass cloth protrusion on the hole walls and a roughness ≤18μm. Electroplating requires highly dispersing additives, with an internal copper thickness ≥20μm and a tolerance ≤4μm, and a copper thickness ratio at the hole opening to the bottom ≤1.5:1. Plasma cleaning is performed before immersion gold plating, ensuring a dense, microporous gold layer. Salt spray testing shows no corrosion for ≥96 hours, and the internal stress of the nickel layer is controlled between 80-120MPa. The blue oil requires high insulation, with a dielectric strength ≥40kV/mm. After development, high-pressure water washing removes residue, followed by curing at 150℃ for 70 minutes. Each batch undergoes CAF testing (100V, 85℃/85%RH, 500h), with an insulation resistance ≥100MΩ. Ion contamination ≤0.3μg/cm², no stratification observed in ultrasonic scanning after thermal shock, and full-process MES recording.

Key Specifications
Layer Count 8-Layer
Material FR-4
Board Thickness 1.6 mm (Customizable)
Copper Thickness 1/1/1/1/1/1/1/1 oz
Minimum Hole Size 0.2 mm
Minimum Line Width 0.12 mm
Minimum Line Spacing 0.12 mm
Solder Mask Color Blue
Surface Finish   ENIG



Product Description

High Aspect Ratio Through-Hole Technology

  • Board thickness: 1.6mm.
  • Aspect ratio up to 8:1.
  • Supports complex multilayer interconnections.

Precision Double-Sided Drilling Process

  • Double-sided drilling improves hole alignment accuracy.
  • Eliminates glass fiber protrusion inside plated holes.
  • Enhances long-term plated-through-hole reliability.

Superior Hole Wall Quality

  • Hole wall roughness ≤18μm.
  • Optimized for high-quality copper deposition.
  • Improved mechanical and electrical performance.

Uniform Through-Hole Copper Plating

  • Average hole copper thickness ≥20μm.
  • Thickness variation ≤4μm.
  • Ensures consistent conductivity and durability.

High Throwing Power Electroplating Technology

  • Specialized plating additives improve copper distribution.
  • Hole entrance-to-bottom copper ratio ≤1.5:1.
  • Reliable metallization for deep through holes.

Premium ENIG Surface Finish

  • Plasma cleaning before ENIG processing.
  • Dense, pore-free immersion gold layer.
  • Excellent solderability and oxidation resistance.
  • Design Specifications
Item Mass Production Capability Extreme Capability
Board Thickness Range 0.3~6.0mm 0.3~6.0mm
Exposure Alignment Accuracy ±0.015mm ±0.005mm
Minimum Annular Ring Single side ≥0.05mm Single side ≥0.05mm
Min Line Width/Space (1/3oz base copper) 0.05mm / 0.05mm 0.045mm / 0.045mm
Min Line Width/Space (1/2oz base copper) 0.05mm / 0.05mm 0.05mm / 0.05mm
Min Line Width/Space (1oz base copper) 0.075mm / 0.075mm 0.075mm / 0.075mm
Etching Tolerance (1/3oz base copper) ±0.005mm ±0.005mm
Etching Tolerance (1/2oz base copper) ±0.005mm ±0.005mm
Etching Tolerance (1oz base copper) ±0.0075mm ±0.0075mm
Gold Finger Total Pitch Tolerance <30mm: ±0.05mm
30~60mm: ±0.075mm
<30mm: ±0.03mm
30~60mm: ±0.05mm
