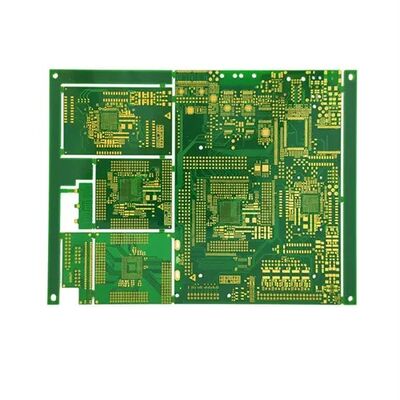

2oz RO4003C Microwave High Frequency Printed Circuit Board For Radar System

2oz RO4003C Microwave High Frequency Printed Circuit Board For Radar System

Brand Name: XSW PCB
Model Number: XSWPCB
MOQ: 1
Price: Negotiable
Payment Terms: Western Union
Supply Ability: 1 Million Square feet/per month
Detail Information
Place of Origin:
China
Certification:
UL ,IOS9000
Layer Count:
14-Layer
Material:
RO4003C
Board Thickness:
2.5 Mm (Customizable)
Copper Thickness:
2/1/1/1/1/1/1/1/1/1/1/1/1/2 Oz
Surface Finish:
Immersion Gold
Supply Ability:
1 Million Square feet/per month
Highlight:

Microwave High Frequency Printed Circuit Board

,

RO4003C High Frequency Printed Circuit Board

Product Description

2oz RO4003C Microvia Microwave High Frequency PCB Board For Radar System

High-frequency PCB is a special circuit board designed for high-frequency electromagnetic scenes, suitable for high-frequency (frequency>300MHz, corresponding to wavelength <1 meter) and microwave (frequency>3GHz, corresponding to wavelength <0.1 meter) fields. It is based on microwave substrate copper clad laminate, combined with some processes of ordinary rigid circuit board manufacturing, or made through special processing.



Key Specifications
Layer Count 14-Layer
Material RO4003C
Board Thickness 2.5 mm (Customizable)
Copper Thickness 2/1/1/1/1/1/1/1/1/1/1//1/1/2 oz
Minimum Hole Size 0.2 mm
Minimum Line Width 0.2 mm
Minimum Line Spacing 0.2 mm
Solder Mask Color Green
Surface Finish   Immersion Gold



Product Description

Features of High-Frequency PCB

    • Special materials: Polytetrafluoroethylene (PTFE), PPO and other materials are often used, which have low dielectric constant, low loss factor, and thermal expansion coefficient similar to copper foil.

    • ​​Strict impedance control: The impedance needs to be precisely controlled, usually within a tolerance of about 2% to ensure signal transmission stability.

    • ​​Fine manufacturing process: High design and manufacturing precision, using micro-holes, blind holes and buried holes to increase line density and signal transmission efficiency.

    • ​​Strong anti-interference: Improve anti-interference and electromagnetic compatibility through processes such as multi-layer printing



Applications of  High-Frequency PCB

    • ​Wireless communication: such as base stations, satellite communications, cellular networks, mobile phones, etc., used to transmit and process high-frequency radio waves, such as RF modules and antenna feeder networks of 5G base stations.
    • ​​Radar systems: including radars in the aerospace fields, as well as automotive collision avoidance systems, which can ensure the accuracy and reliability of radar signals.
    • ​​Medical equipment: Processing high-speed data in high-end medical equipment such as MRI and CT
  • Design Specifications
Item Mass Production Capability Extreme Capability
Board Thickness Range 0.3~6.0mm 0.3~6.0mm
Exposure Alignment Accuracy ±0.015mm ±0.005mm
Minimum Annular Ring Single side ≥0.05mm Single side ≥0.05mm
Min Line Width/Space (1/3oz base copper) 0.05mm / 0.05mm 0.045mm / 0.045mm
Min Line Width/Space (1/2oz base copper) 0.05mm / 0.05mm 0.05mm / 0.05mm
Min Line Width/Space (1oz base copper) 0.075mm / 0.075mm 0.075mm / 0.075mm
Etching Tolerance (1/3oz base copper) ±0.005mm ±0.005mm
Etching Tolerance (1/2oz base copper) ±0.005mm ±0.005mm
Etching Tolerance (1oz base copper) ±0.0075mm ±0.0075mm
Gold Finger Total Pitch Tolerance <30mm: ±0.05mm
30~60mm: ±0.075mm
<30mm: ±0.03mm
30~60mm: ±0.05mm
