Multilayer Printed Circuit Board
Created with Pixso.

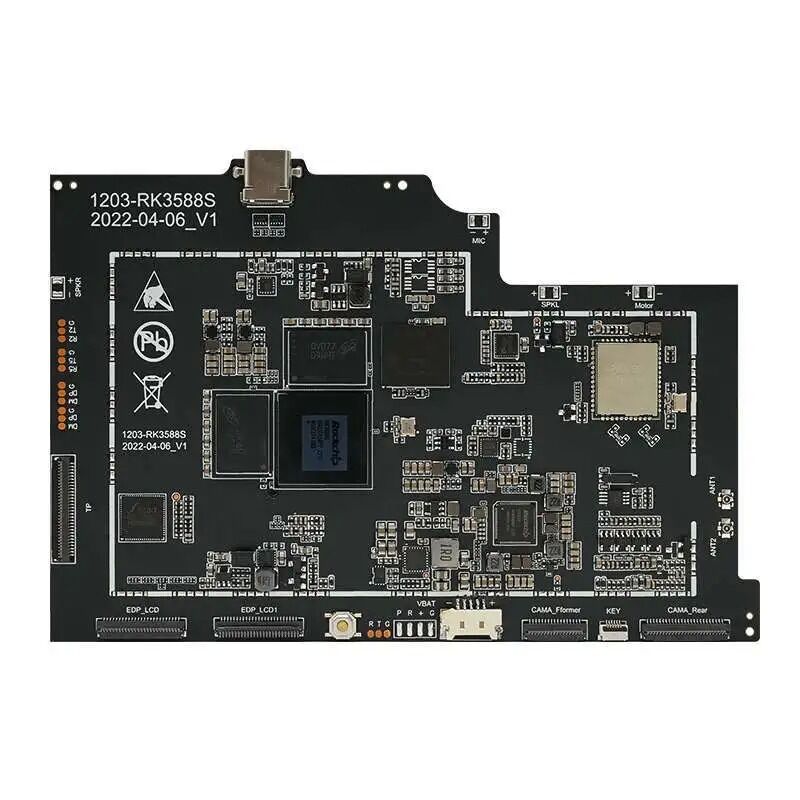

Multilayer Electronics PCBA Printed Circuit Board Assembly High Density Wiring Board For Tablet

Multilayer Electronics PCBA Printed Circuit Board Assembly High Density Wiring Board For Tablet

Brand Name: XSW PCB
Model Number: XSWPCB
MOQ: 1
Price: Negotiable
Payment Terms: Western Union
Supply Ability: 1 Million Square feet/per month
Detail Information
Place of Origin:
China
Certification:
UL ,IOS9000
Layer Count:
8 Layers
Material:
FR4
Board Thickness:
1.0mm
Copper Thickness:
1/1/1/1/1/1/1/1 Oz
Minimum Hole Size:
0.2mm
Minimum Line Width:
0.1mm
Solder Mask Color:
Black
Supply Ability:
1 Million Square feet/per month
Highlight:

Multilayer PCBA Printed Circuit Board Assembly

,

Tablet Electronics PCBA

,

Multilayer Electronics PCBA

Product Description
Multilayer Electronics PCBA Printed Circuit Board Assembly High Density Wiring Board For Tablet
Key Specifications
Layer Count 8 Layers
Material FR4
Board Thickness 1.0 mm
Copper Thickness 1/1/1/1/1/1/1/1 oz
Minimum Hole Size 0.2mm
Minimum Line Width 0.1mm
Minimum Line Spacing 0.1mm
Solder Mask Color Black
Surface Finish OSP
Application Field

Industrial Control and Automation Systems

Our multilayer high-density PCBA printed circuit board assemblies are specially engineered for tablet devices. Adopting advanced HDI high-density wiring technology, these multilayer circuit boards achieve compact line width/spacing and dense component layout, which perfectly satisfy the thin, lightweight and miniaturization design demands of tablets.
We provide turnkey PCBA services including multilayer PCB fabrication, component sourcing, SMT mounting, BGA soldering, functional testing and final assembly. The boards support stable transmission of display signals, power management, touch control and wireless communication circuits inside tablets. Manufactured in accordance with IPC, UL and RoHS standards, they deliver reliable performance for consumer tablet PCs, educational tablets and industrial rugged tablets. Custom Gerber-based development, prototype sampling and mass production are all supported.



Key Manufacturing Features

1.Multilayer HDI high-density wiring design, realize miniaturization layout for slim tablet structure
2.Support fine line width & spacing, micro vias, suitable for dense chip placement such as CPU, PMIC
3.Turnkey one-stop service: PCB manufacturing + components procurement + SMT & BGA assembly + testing
4.Optimized impedance control for LCD display, touch screen, Wi-Fi/Bluetooth signal transmission
5.Multiple surface finishes optional: ENIG, immersion gold, OSP to meet tablet long-term stability requirements
6.Strict quality control: AOI, X-Ray inspection, ICT and functional testing before delivery
7.High TG substrate options, excellent thermal stability to adapt tablet continuous operation
8.Meet RoHS lead-free requirements, UL certification available upon customer request
9.Thin board thickness options, matching ultra-thin tablet shell assembly space limitation
10.Widely applicable for consumer tablets, kids learning tablets, industrial rugged tablet motherboards

Technical Specifications
Item Mass Production Capability Extreme Capability
Board Thickness Range 0.3~6.0mm 0.3~6.0mm
Exposure Alignment Accuracy ±0.015mm ±0.005mm
Minimum Annular Ring Single side ≥0.05mm Single side ≥0.05mm
Min Line Width/Space (1/3oz base copper) 0.05mm / 0.05mm 0.045mm / 0.045mm
Min Line Width/Space (1/2oz base copper) 0.05mm / 0.05mm 0.05mm / 0.05mm
Min Line Width/Space (1oz base copper) 0.075mm / 0.075mm 0.075mm / 0.075mm
Etching Tolerance (1/3oz base copper) ±0.005mm ±0.005mm
Etching Tolerance (1/2oz base copper) ±0.005mm ±0.005mm
Etching Tolerance (1oz base copper) ±0.0075mm ±0.0075mm
Gold Finger Total Pitch Tolerance <30mm: ±0.05mm
30~60mm: ±0.075mm
<30mm: ±0.03mm
30~60mm: ±0.05mm
