HDI Printed Circuit Board
Created with Pixso.

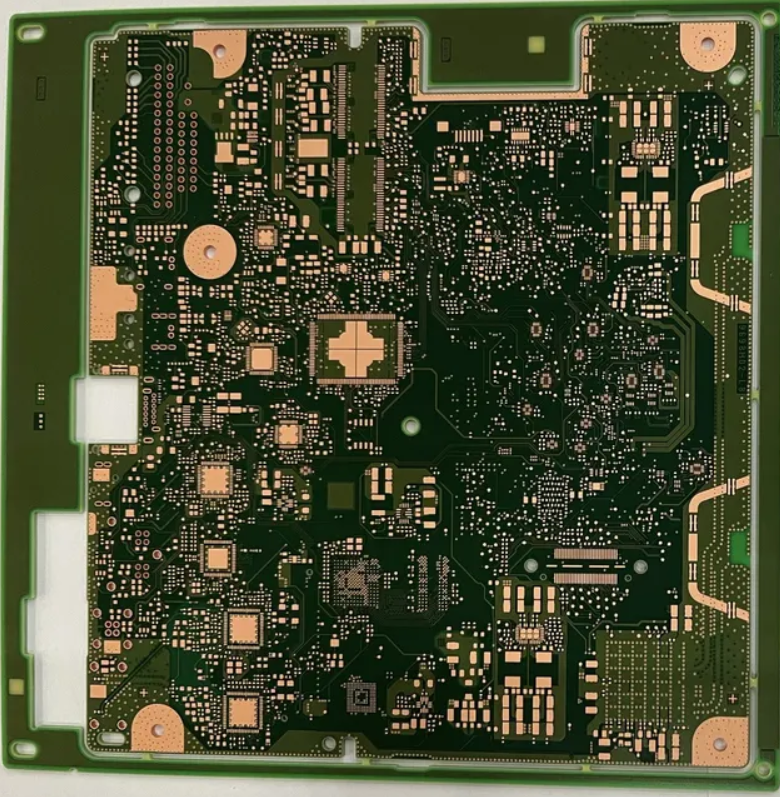

8 Layer Multilayer High Density Interconnect HDI PCB Board FR4 1.2mm Thickness

8 Layer Multilayer High Density Interconnect HDI PCB Board FR4 1.2mm Thickness

Brand Name: XSW PCB
Model Number: XSWPCB
MOQ: 1
Price: Negotiable
Payment Terms: Western Union
Supply Ability: 1 Million Square feet/per month
Detail Information
Place of Origin:
China
Certification:
UL ,IOS9000
Layer Count:
8-Layer
Material:
FR4
Board Thickness:
1.2mm
Copper Thickness:
1/1/1/1/1/1/1/1 Oz
Minimum Hole Size:
0.1 Mm
Minimum Line Width:
0.05 Mm
Minimum Line Spacing:
0.075 Mm
Supply Ability:
1 Million Square feet/per month
Highlight:

8 Layer High Density Interconnect HDI PCB

,

High Density Interconnect HDI PCB Board

,

HDI Multilayer PCB FR4

Product Description
Customizable High-Density Interconnect (HDI) PCB Boards

This product is tailor-made for industrial PLC automation control systems, delivering a reliable and smooth human-machine interaction (HMI) operating experience while providing a comprehensive application solution.

Key Specifications
Layer Count 8-Layer
Material FR4
Board Thickness 1.2mm
Copper Thickness 1/1/1/1/1/1/1/1 oz
Minimum Hole Size 0.1 mm
Minimum Line Width 0.05 mm
Minimum Line Spacing 0.075 mm
Solder Mask Color Green
Surface Finish  OSP
Application Field High-Density Interconnect

Product Description
High-Density Interconnect (HDI) Technology

High-Density Interconnect (HDI) utilizes microvias with a diameter of ≤0.15 mm, employing advanced fine-line patterning and microvia formation techniques to achieve interconnection of components within an ultra-compact form factor. Its architectural design — characterized by minimized conductor geometries and optimized layer stacking — enables a wiring density that is an order of magnitude higher than that of conventional printed circuit boards (PCBs), making it essential for high-performance miniaturized systems.

Electrical performance is significantly enhanced through precise control of parasitic effects: residual stub inductance is reduced, discrete decoupling capacitors are eliminated via integrated power/ground planes, and crosstalk is minimized through controlled impedance routing. Furthermore, through the strategic placement of thin HDI dielectric layers, radiated electromagnetic interference (RFI/EMI) is lowered by minimizing loop inductance and uniformly distributing capacitance, thereby optimizing signal integrity along high-frequency transmission paths.

  • Design Specifications
Item Mass Production Capability Extreme Capability
Board Thickness Range 0.3~6.0mm 0.3~6.0mm
Exposure Alignment Accuracy ±0.015mm ±0.005mm
Minimum Annular Ring Single side ≥0.05mm Single side ≥0.05mm
Min Line Width/Space (1/3oz base copper) 0.05mm / 0.05mm 0.045mm / 0.045mm
Min Line Width/Space (1/2oz base copper) 0.05mm / 0.05mm 0.05mm / 0.05mm
Min Line Width/Space (1oz base copper) 0.075mm / 0.075mm 0.075mm / 0.075mm
Etching Tolerance (1/3oz base copper) ±0.005mm ±0.005mm
Etching Tolerance (1/2oz base copper) ±0.005mm ±0.005mm
Etching Tolerance (1oz base copper) ±0.0075mm ±0.0075mm
Gold Finger Total Pitch Tolerance <30mm: ±0.05mm
30~60mm: ±0.075mm
<30mm: ±0.03mm
30~60mm: ±0.05mm
