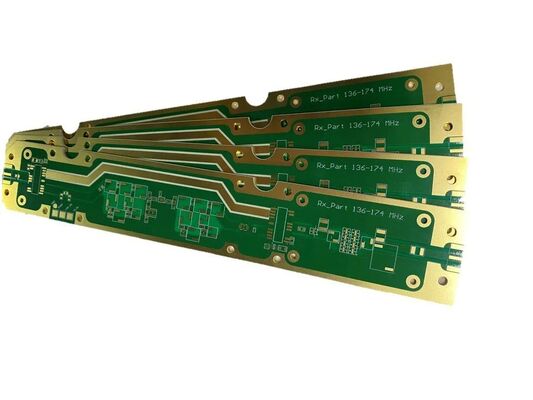

ISOLA 370HR High Frequency PCB Manufacturing and Assembly 1.5mm is a high-performance multilayer PCB solution designed for high-speed digital, RF communication, networking, industrial control, automotive electronics, and advanced computing applications. Built with premium ISOLA 370HR high-performance laminate material, this PCB offers exceptional thermal reliability, low loss characteristics, superior CAF resistance, and outstanding electrical performance for demanding electronic systems.
| Layer Count | 8-Layer |
| Material | ISOLA 370HR |
| Board Thickness | 1.5 mm (Customizable) |
| Copper Thickness | 1.5/1/1/1/1/1/1/1.5 oz |
| Minimum Hole Size | 0.1 mm |
| Minimum Line Width | 0.1 mm |
| Minimum Line Spacing | 0.1 mm |
| Solder Mask Color | Green |
| Surface Finish | ENIG |
Product Description
| Item | Mass Production Capability | Extreme Capability |
|---|---|---|
| Board Thickness Range | 0.3~6.0mm | 0.3~6.0mm |
| Exposure Alignment Accuracy | ±0.015mm | ±0.005mm |
| Minimum Annular Ring | Single side ≥0.05mm | Single side ≥0.05mm |
| Min Line Width/Space (1/3oz base copper) | 0.05mm / 0.05mm | 0.045mm / 0.045mm |
| Min Line Width/Space (1/2oz base copper) | 0.05mm / 0.05mm | 0.05mm / 0.05mm |
| Min Line Width/Space (1oz base copper) | 0.075mm / 0.075mm | 0.075mm / 0.075mm |
| Etching Tolerance (1/3oz base copper) | ±0.005mm | ±0.005mm |
| Etching Tolerance (1/2oz base copper) | ±0.005mm | ±0.005mm |
| Etching Tolerance (1oz base copper) | ±0.0075mm | ±0.0075mm |
| Gold Finger Total Pitch Tolerance | <30mm: ±0.05mm 30~60mm: ±0.075mm |
<30mm: ±0.03mm 30~60mm: ±0.05mm |
